What does rewinding an electric motor involve?

Recording the original winding data, stripping the burnt winding, cleaning and inspecting the core, rewinding with magnet wire and class F or H insulation, varnish impregnation, controlled baking and testing. A low-power three-phase motor usually leaves within a few working days of quote approval, with an insulation, resistance and no-load current report.

Workshop: Apodaca, Nuevo León
Coverage: In the workshop and on site, across Mexico
Response: Initial diagnosis within 24 h
Phone: +52 81 2094 3194

In detail

Rewinding is the workshop's core trade, not an add-on service. When an electric motor burns out, the first job is reading the original winding: turn count, wire gauge, pitch, connection and thermal class of the insulation. That record is what lets the rewound motor keep its torque, its rated current and its efficiency, instead of leaving in working order but drawing more power for the rest of its life.

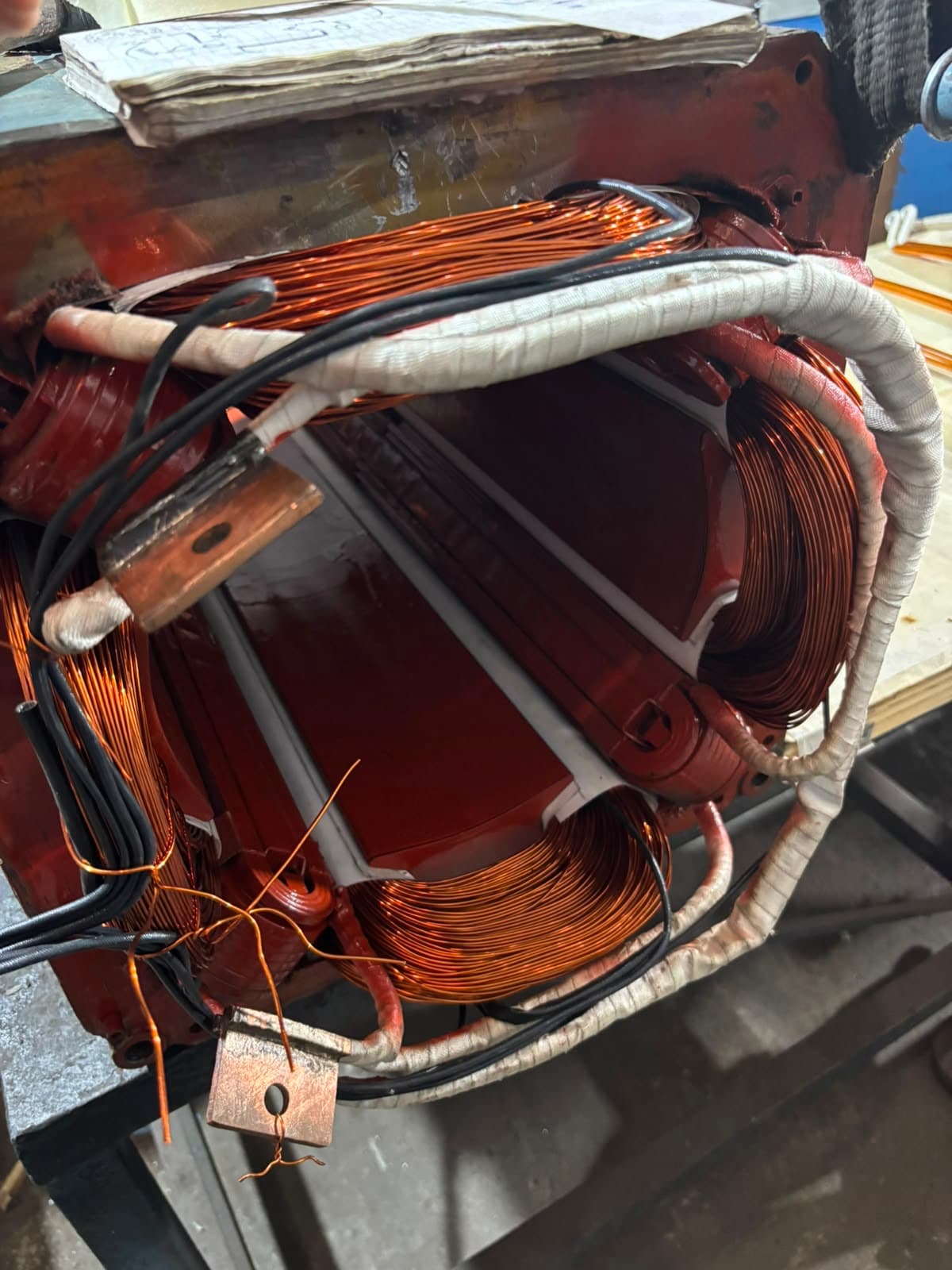

With those data recorded we strip the damaged winding, clean and inspect the core, and rewind with magnet wire and class F or H insulation according to the working temperature. We finish with varnish impregnation, controlled baking and the electrical tests that document the result.

On video

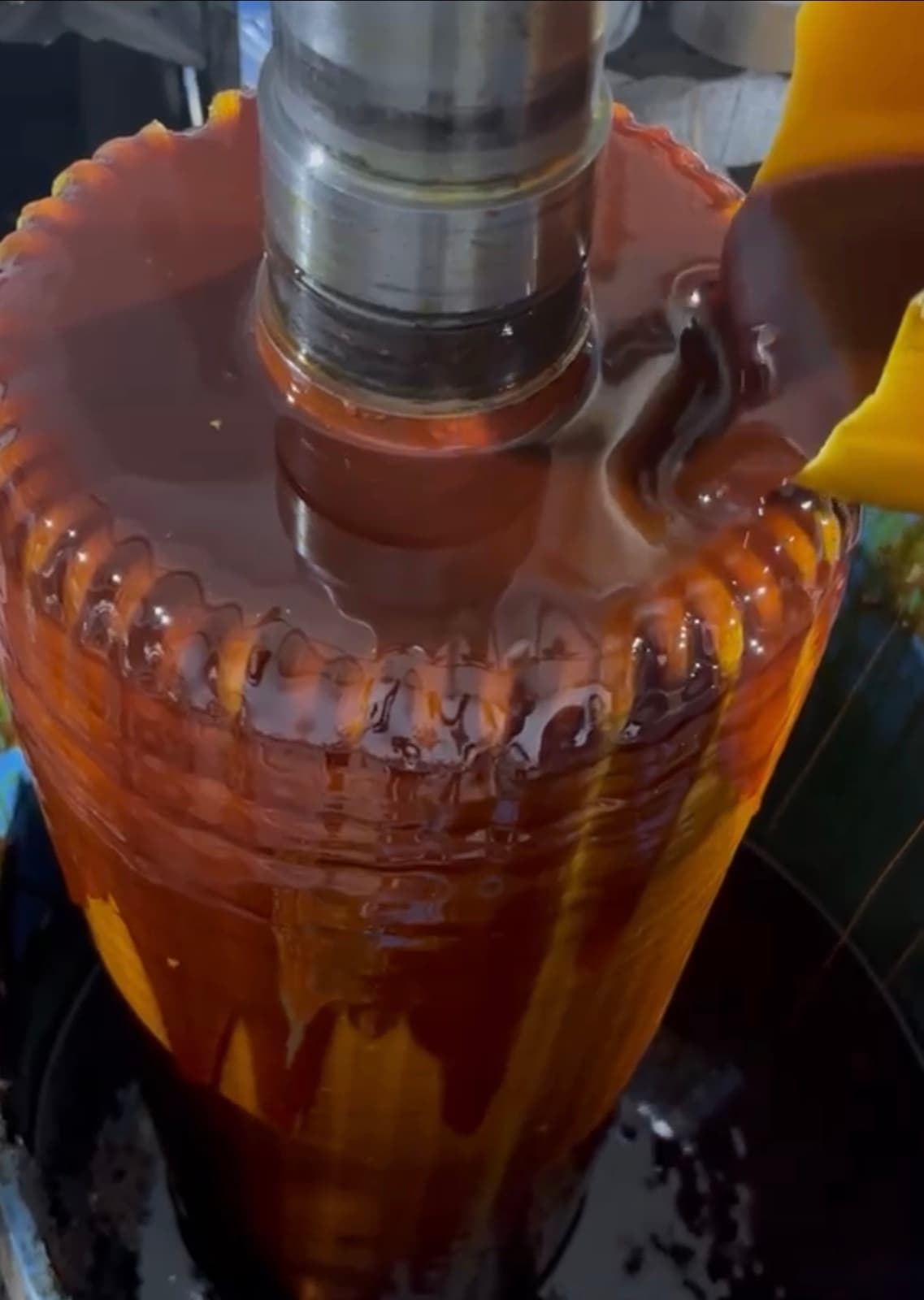

Varnishing the rotor after rewinding.

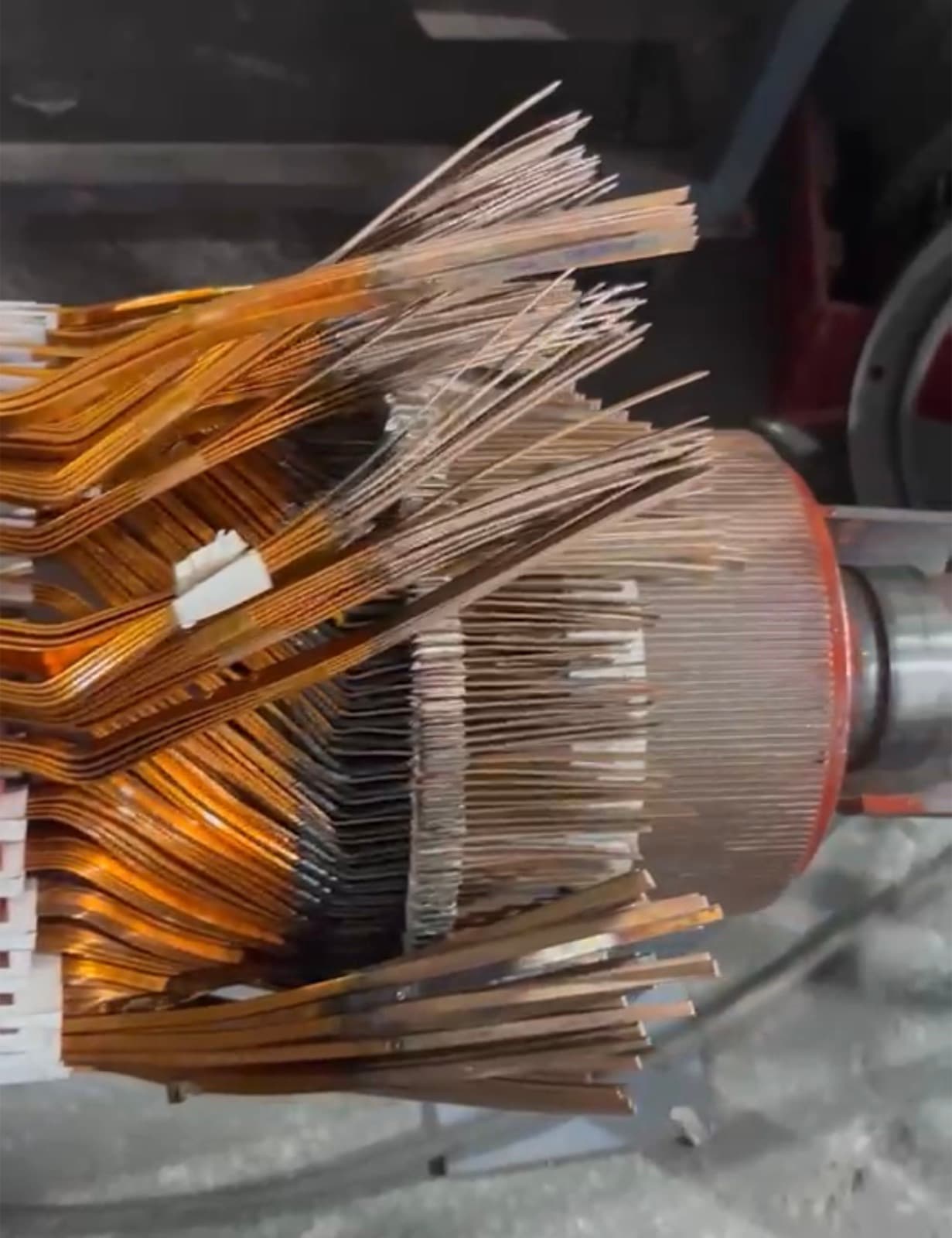

Setting the coils into the rotor.

What it includes

Original winding data recorded before teardown
Magnet wire and class F or H insulation as the application requires

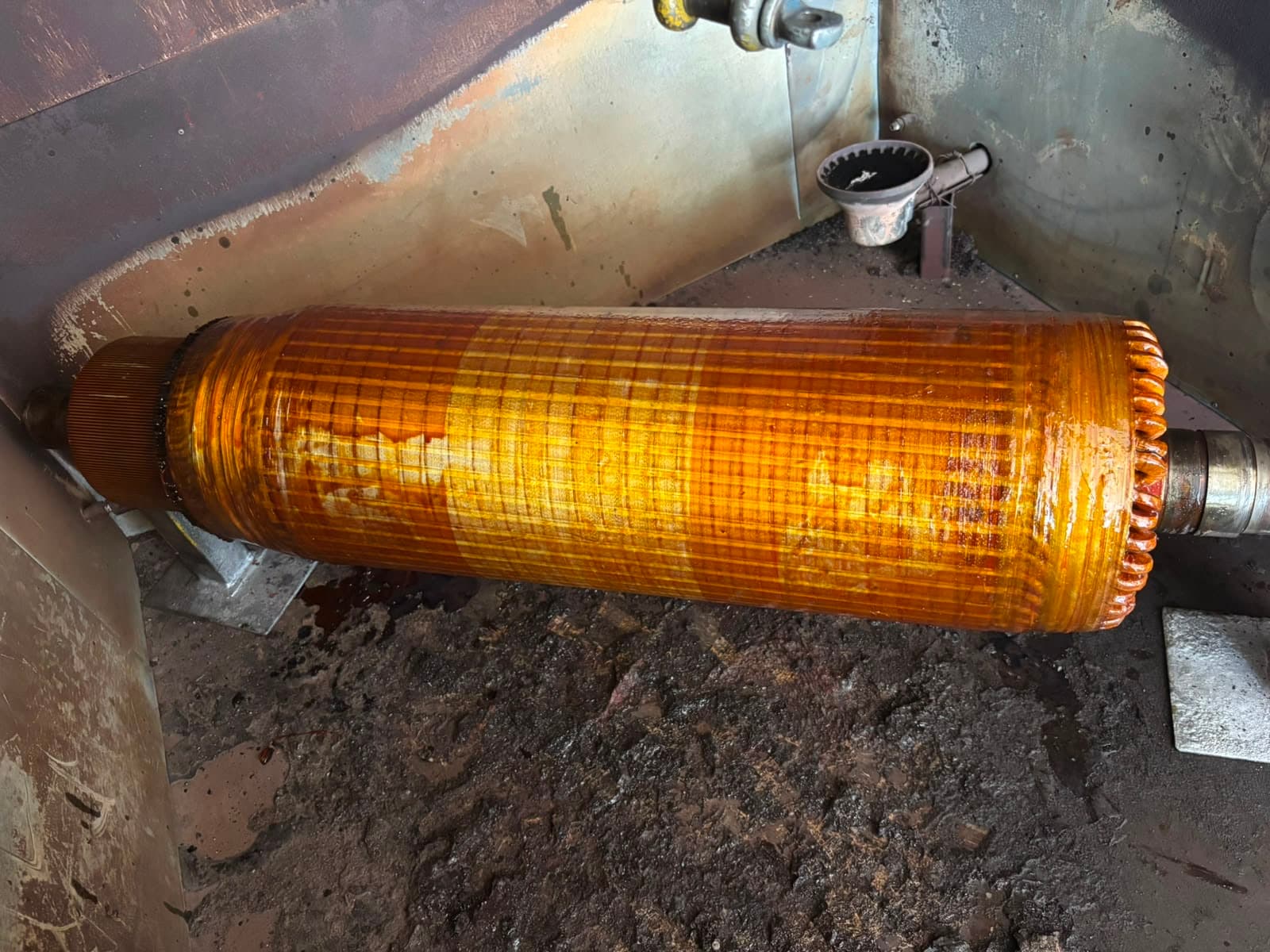

Varnish impregnation with controlled curing
Insulation, resistance and no-load current testing

Inside the work

What we handle

01Three-phase squirrel-cage motors
02Single-phase A.C. and D.C. motors
03Single-phase capacitor-start motors
04Centrifugal and submersible pump motors
05Fan and compressor motors
06Two-speed and high-efficiency motors

Industries

Food and beverage
Plastics and injection moulding
Metalworking
Water treatment and pumping
Cement and aggregates
Textiles and paper

Frequently asked questions

How long does rewinding a motor take?

It depends on the power rating and on whether the core turned out to be damaged. A low-power three-phase motor usually leaves within a few working days once the quote is approved; larger ones take longer. The committed date goes in the quote in writing, not verbally.

Is it better to rewind or buy a new motor?

As long as the core and the frame are sound, rewinding costs a fraction of replacing the motor and is delivered far sooner than an imported unit. If we find the core damaged or the frame compromised we tell you, and we compare both options before you spend.

Does a rewound motor lose efficiency?

Only if it is rewound badly. The loss appears when the wire gauge is changed, the turn count is altered, or the core is overheated to strip the winding. Respecting the original data and without burning the stator, the motor recovers essentially its nameplate efficiency.

What warranty does the rewind carry?

We back the winding and the labour in writing, and we follow up after start-up. The term is stated on the service order.
